The galvanized steel industrial roller shutters are the most
popular shutters for industrial applications, such as
industrial factories, industrial warehouse, and more.
♦ Factory
♦ Warehouse
♦ and so onTECHNICAL SPECIFICATIONS
| Item number | Max width | Max height | Color | Operation way | Options |
| HG110 | 12,000 mm | 9,000 mm | any RAL color by powder coating | manual operation, motorized operation | shutter box, safety sensor, UPS, safety brake, video surveillance |

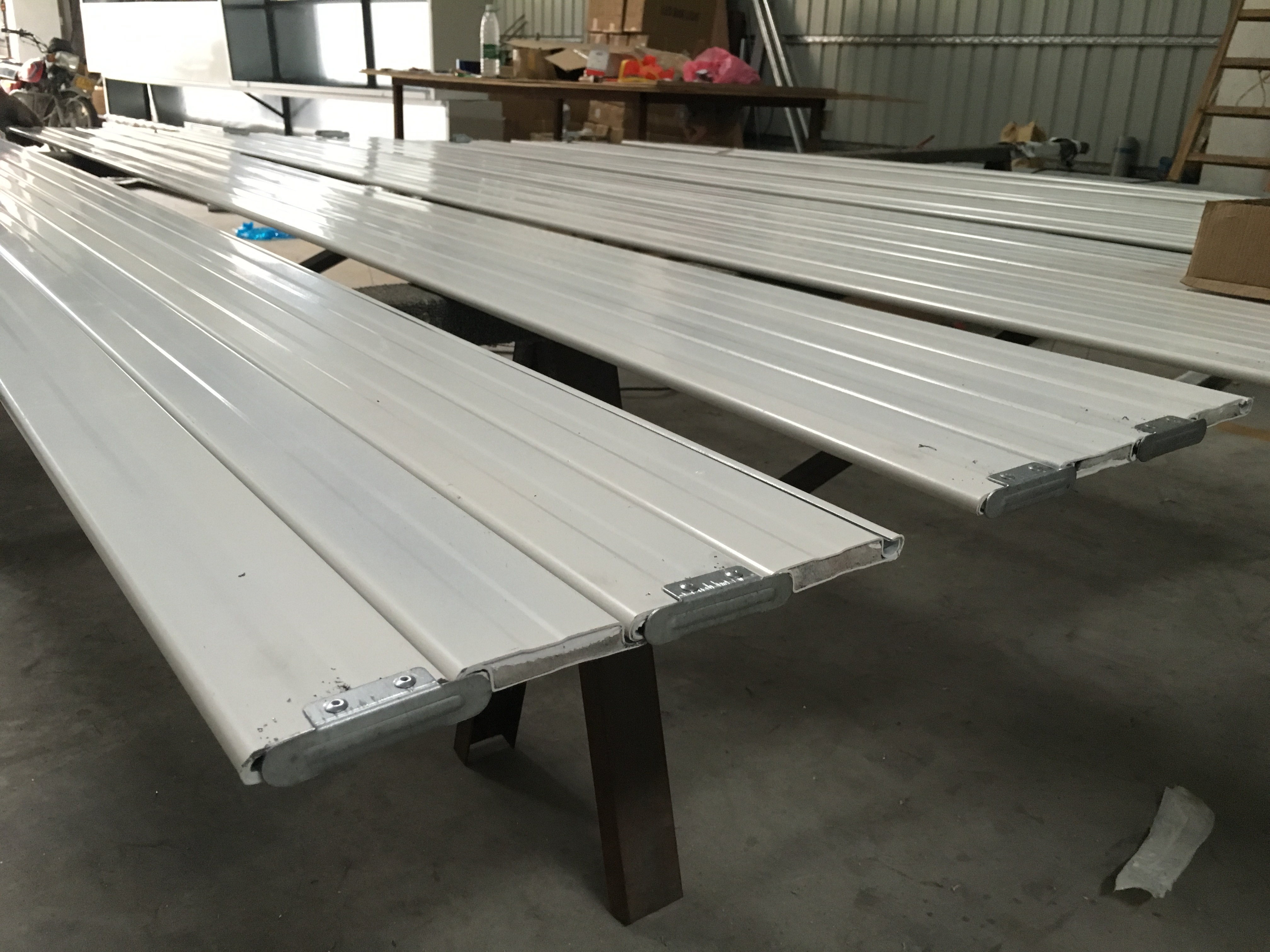

Curtain:The rolling shutter curtain itself consists of Consisted of solid
interlockig galvanized steel slats, with steel
end clips on both sides of curtain to prevent lateral movement.
Thickness option: 0.8 mm, 1 mm, 1.2 mm
Bottom rail:
♦Material: rollformed galvanized steel
♦With plastic end caps on both sides
♦Dimension:40*90mm, Depth*Height
Guide rail:
♦Material: rollformed galvanized steel
♦Dimension:100*60mm, Width*Depth
♦Thickness available: 1.2mm, 1.5mm
♦Windproof guide rails are available if needed
Shaft / Axle:
♦Material: galvanized steel
♦Diameter: 6 inches, 8 inches, 10 inches
♦Wall thickness: 2 mm, 2.5 mm, 3 mm, 4 mm
Mullions: Removable center mullions are available on requiest for
applications were shutter opening
can not be covered by one shutter door.
Side plates / brackets
♦The brackets are manufactured from mild steel and supplied in
premed finish
♦The brackets can only be installed on a structural fixing surface
such as concete, steel columns, steel
angles are normally used to supported the brackets if needed
♦With plates slotted to accommodate shaft or motor mounting.
Operation way:
♦Manual operation by hand or hook (push up & push down)
♦Automatic operation with motor(remote controls, switch button)
Optional:
♦Shutter box / hood cover
♦Perforated slats, punched slats are available if needed
♦Wicket door
PS: Optional
1, Micro-perforated steel slats, Punched steel slats are available
if needed.
2, When the wind becomes a key factor, we recommend our windproof
industrial steel roller shutter doors,
with special designed windproof end clips and guide rail.
3, Insulated roller shutter doors are available which offer higher
levels of security as well as energy saving function.
Project photo:
FAQ
- What is the delivery time?
A: 20 days for the standard colors and 30 days for the customized.
Also it depends on the specifications and quantity each order.
Shipment time depends on the location of our customers.- What is your payment items?
A: Normally we accept 30% for deposit by T/T and the balance would
be arranged before delivery. If you have any other suggestion,
please contact with us.- Can we place one or two sets for trial?
A: Yes of course, this is the better way of quality check. Also if
you don't required one whole set, we have small sample in stock as
well, it is free of charge, you just need to handle with the
freight. It is a good way to show the sincerity for both of us.- How can I know the price exactly?
A: The price is based on your specific requirements, it is better
to provide as much as possible information such as color, size,
quantity, market location, sales patterns, all of these would be of
help us to quote the exact price.- Can I order components instead of the full set of door?
A: Yes, as a factory we welcome business clients purchasing
components of the door, such as panels, hardware's, motors, etc.,
to maximize the advantage of our mutual parties.
