Basic info
| Material | Steel |
| Position | Industry, warehouse, commercial shop |
| MOQ | 1 square meter |
| Certification | CCC, ISO, CE |
| Origin | Guangzhou, China |
| Color | Any RAL color |
| Sample | Available |
| Size | customized available (maximum width: 7m, maximum height: 7m) |
| Type of drive | Manually operated(push up and down)
Motor-operated (remote control or switch button or endless chain) |
| Function | Safety, theftproof, weather resistant, rustproof, sound insulation |
Product Description

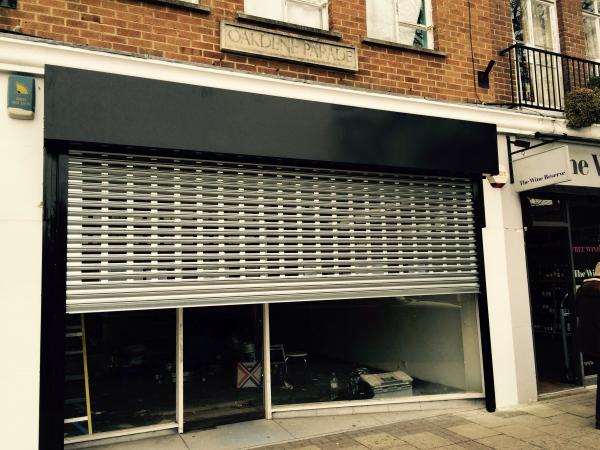

Steel roller shutter doors are the most cost-effective solutions to
secure your premises, our galvanized steel rolling shutters can be
used for a wide variety of commercial, industrial, or residential
applications
Designed specifically for external use, these doors are widely used
in commercial buildings, warehouses, garages, and even residential
properties.
They can come in a range of colors and are heavy duty so they’re
very strong keeping your assets safe & protected from theft.
Applications
Consisted of solid interlocking galvanized steel slats, with steel
end clips on both sides of the curtain to prevent lateral movement,
this type of door is designed and widely used for industrial,
commercial, and residential applications as follows:
♦ Factory
♦ Kiosk
♦Commercial Spaces
♦Warehouses and Industrial Buildings
♦Garages and Parking Lots
♦ and more
Key Features / Benefits
One of the key advantages of low-cost roller shutter doors is their
low cost. Made from steel materials, Although nowadays roller
shutters can be manufactured from a wide variety of materials. The
most common choice is galvanized steel, which is the lowest cost
while providing a high level of security against forced entry.
Security is a top priority for any building owner or occupant,
steel roller shutter doors provide an excellent solution. These
doors are equipped with strong locking mechanisms, preventing
unauthorized access and ensuring the safety of the premises. The
robust steel slats and tracks offer enhanced resistance against
forced entry, making them an excellent choice for commercial
properties.
Noise pollution can be a significant issue in commercial areas.
Steel roller shutter doors feature insulating properties that help
reduce outside noise, creating a quieter and more peaceful indoor
environment. This is particularly beneficial for businesses located
near busy roads or areas with high noise levels.

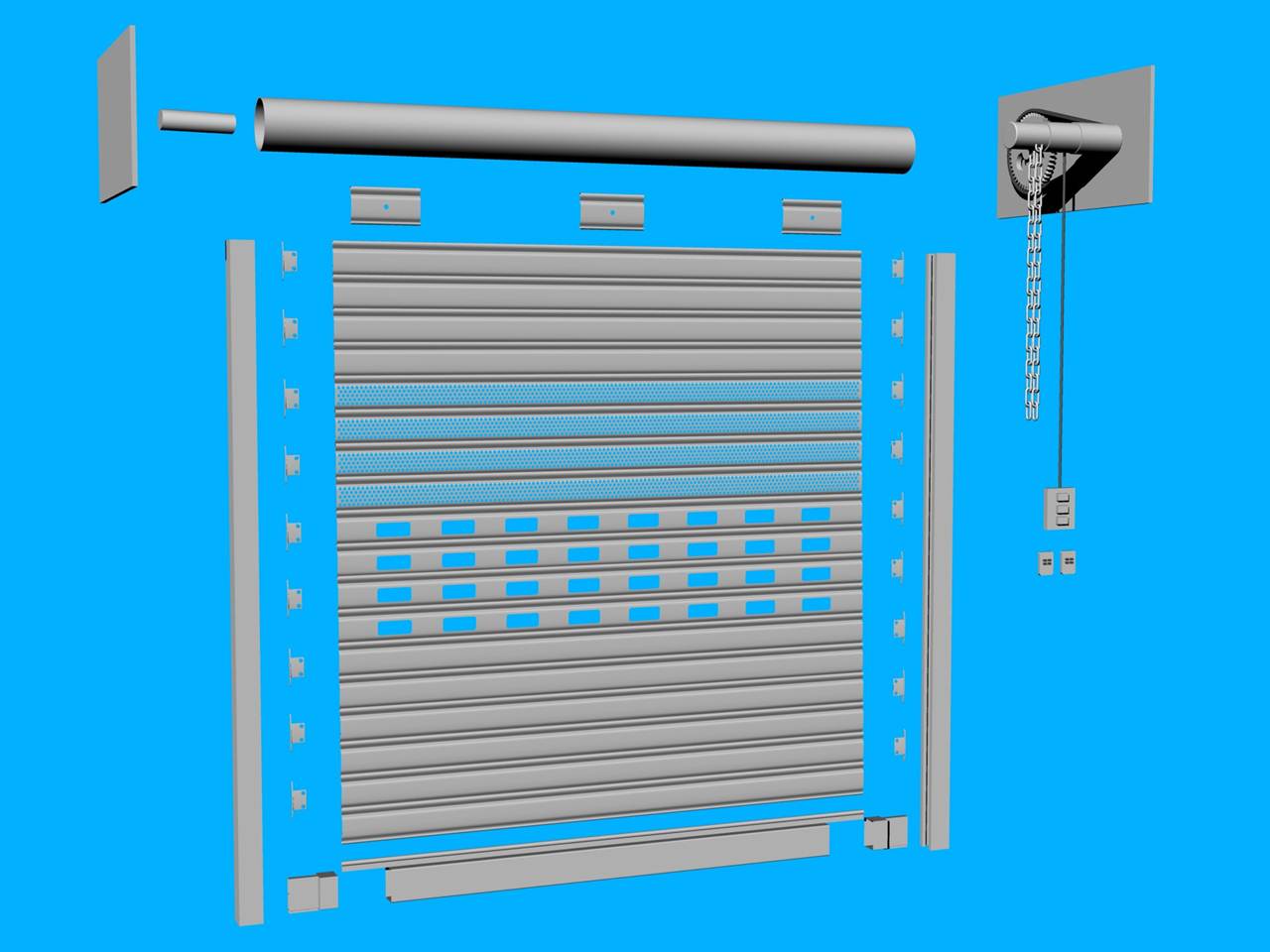

Drawings
| 1 | Steel bottom rail | 9 | Bearing |
| 2 | Plastic insert | 10 | Left side plate |
| 3 | Steel slat | 11 | Right side plate |
| 4 | Steel end clip | 12 | Roller shutter motor |
| 5 | Steel punched slat | 13 | Manual hoist chain |
| 6 | Steel guide rail | 14 | Switch button |
| 7 | Steel micro-perforated slat | 15 | Remote control |
| 8 | Shaft(roller drum) | 16 | |
Technical specifications
Item number | Max width | Max height | Color | Operation way | Options |
SG110 | 12,000 mm | 9,000 mm | any RAL color by powder coating | manual operation, motorized operation | shutter box, safety sensor, UPS, safety brake, video surveillance |
Warranty
♦ We offer 5 years warranty for our roller shutters and 10 years
for motors
♦ We shall not responsible for damages caused by improper use
♦ If there is a proven manufacturing defect in any of the items
supplied within the warranty period, the defective units shall be
supplied and replaced at our cost.
Color Options
Project Photo Gallery
Certification
♦ ISO 9001 certificated, designed, and manufactured in compliance
with relevant industry standards and regulations
♦ CE marking and certification for quality and safety assurance
FAQ of Steel Roll-Up Shutter Door
- What are your main steel door products?
A: Our main steel door products are insulated sectional garage
doors and industry doors. We can offer different materials such as
polyurethane sandwich panels, aluminum profiles with tempered
glass, solid wood, aluminum sheets, laser cut designs, and other
new materials available.
- What is the delivery time?
A: 20 days for the standard colors and 30 days for the customized.
Also, it depends on the specifications and quantity of each order.
Shipment time depends on the location of our customers.
- What are your payment items?
A: Normally we accept 30% for deposit by T/T and the balance would
be arranged before delivery. If you have any other suggestions,
please contact us.
- Can we place one or two sets for trial?
A: Yes, of course, this is the better way of quality check. Also if
you don't require one whole set, we have a small sample in stock as
well, it is free of charge, you just need to handle the freight. It
is a good way to show the sincerity for both of us.
