Automatic Remote Control Large Opening Roller Door Transparent
Polycarbonate / Plastic Rolling Shutter Door for Big Size
Basic Info
| Item number | PC100 |
| Materials | Polycarbonate slats + Aluminum tubes |
| Max width | 6900 mm |
| Max height | 7000 mm |
| MOQ | 1 SET |
| Color | Transparent, frosted, colorful for polycarbonate slats, any RAL
color for aluminum profiles |
| Sample | Free sample is available |
| Applications | Retail spaces, Residential properties, Public buildings,
Hospitality industry, Shopping mall, Showroom, Fashion shops,
Airport, Banks, Club bars, And more |
Overview
Transparent polycarbonate roller shutter doors offer an innovative
and reliable solution for entrance security while allowing natural
light to enhance visibility. With their exceptional strength,
durability, and versatility, these doors provide a wide range of
benefits for commercial and industrial spaces. From optimal
security and thermal insulation to customizability and easy
operation, these doors are designed to meet the ever-evolving
demands of modern business environments. By choosing transparent
polycarbonate roller shutter doors, you can enhance the aesthetic
appeal, functionality, and security of your premises.
Applications
Hotels, restaurants, and bars are other industries where
transparent polycarbonate rolling shutters can find useful
applications. These shutters can enhance the security of the
building during off-hours while still maintaining an open,
welcoming atmosphere. They're also an excellent choice for outdoor
spaces such as patios and balconies, providing security and shelter
without sacrificing the view.
Museums, galleries, libraries, and other public buildings can
benefit from the security and high visibility provided by
transparent polycarbonate rolling shutters. These shutters can also
reduce heating and cooling costs, contributing to the
sustainability and energy efficiency of the building.
Key Features / Benefits
- Excellent Visibility
- Safety and Security
- Durability / Weather resistance
- Flexibility
- UV protection
- Energy saving
- Sound insulation
- Advertising / display effect
- Environment-friendly
- Fire retardant and self-extinguishing
- Up to 12 meter width
- Easy to maintain
Drawings
1, Rubber weather seal
2, Aluminum bottom rail
3, Polycarbonate slats / links
4, Aluminum tubes / pipes
5, Plastic end caps / clips / cover
6, Aluminum guide rail
7, Brush strips
8, Solid galvanized steel slats
9, Steel end clips
10, Connecting slats
11, shaft / axle / barrel
12, bearing
13, left side plate / bracket
14, right side plate / bracket
15, side motor
16, push button
17, remote control
18, manual hoist chain
Technical specifications
Curtain:The polycarbonate rolling shutter itself consists of horizontal
strips of virtually unbreakable crystal clear High-quality
polycarbonate, inserted by stainless steel tubes, with plastic end
clips/cover fixed on both sides to prevent the curtain from lateral
movement.
We offer a variety of polycarboante slats / links, such as
300*115*3 mm, Width*height*thickness, 300*115*2.3 mm,
Width*height*thickness. Actually we can custom made any design as
your requirement with our CNC machine.
Bottom Rail: Extruded aluminum profiles, with rubber weather seal to stop the
dust, rain, insects going inside.
Guide Rail: custom design extruded aluminum profiles, with brush strips to
make the curtain runs more quietly and smoothly.
Shaft / Axle: made of galvanized steel instead of iron with painting, to make it
good looking and prevent the shaft from getting rust. Diameter:5
inches(side motor), 6 inches, 8 inches, 10 inches, Wall thickness:
1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm.
Side plates / Brackets: The brackets are manufactured from mild steel and supplied in
premed finish. The brackets can only be installed on a structural
fixing surface such as concrete, steel columns, steel angles are
normally used to supported the brackets if needed.With plates
slotted to accommodate shaft or motor mounting.
Operation way:
- Manual operation: Spring box system, Torsion spring system, Hoist
chain system, Wire rope system
- Automatic operation: Side motors, Tubular motors. The shutter doors
could be open/close by remote controls, switch button, App, etc.

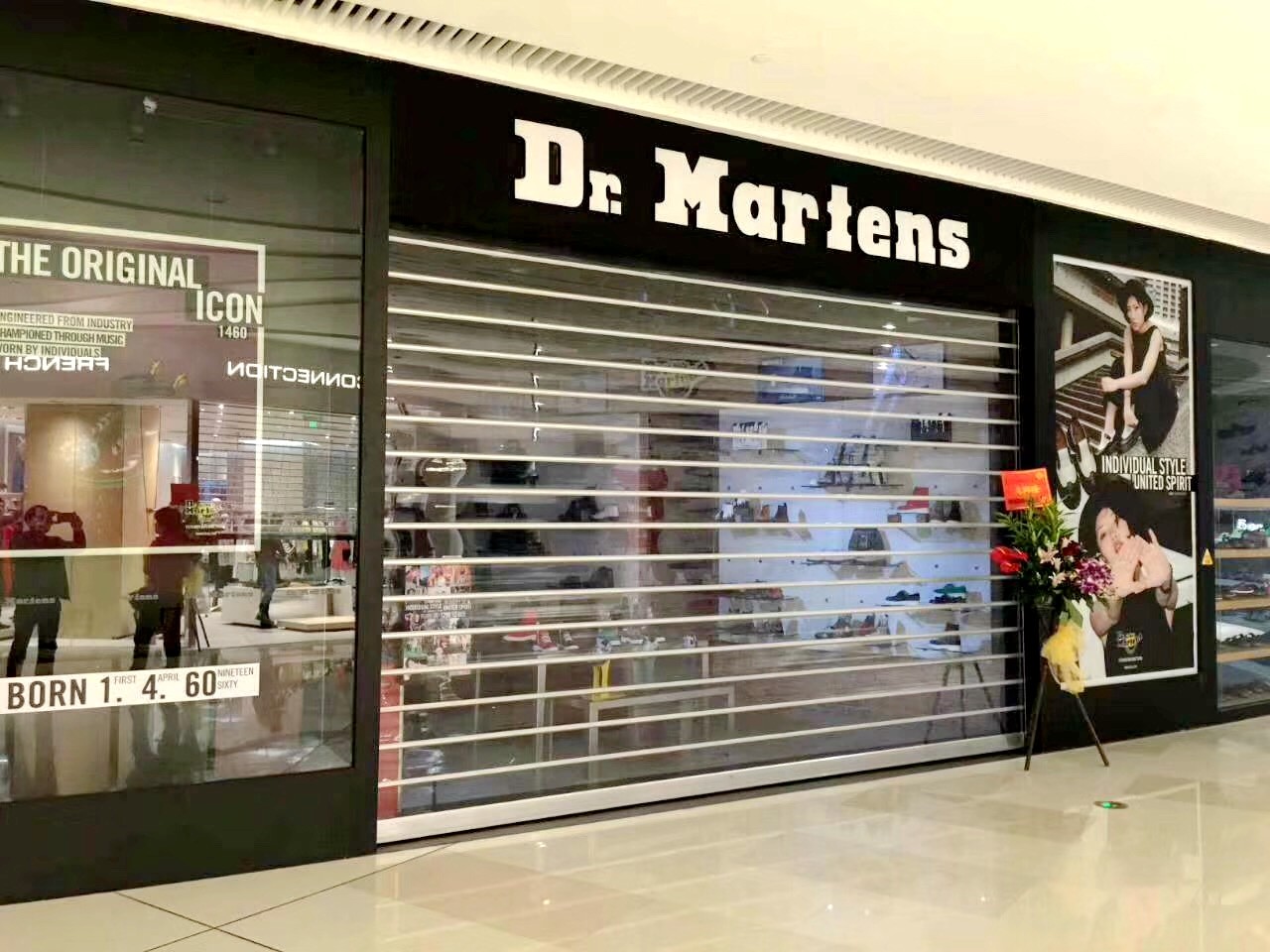

Project Photo Gallery
Optional
| Option 1 | Shutter box / hood cover |
| Option 2 | Photocell (infrared safety sensor) |
| Option 3 | UPS |
| Option 4 | Safety brake |
| Option 5 | Video surveillance |
About US
We, Starking Shutter Manufacturer Limited, are committed to offering commercial security rolling shutter
doors and components to meet our different clients' diverse
requirements with custom made items.
Commercial security roller shutter doors are our CORE business. We
specialize in manufacturing and exporting the following types of
roller shutter doors and components in China.
In addition, with top manufacturers' support in China, we are able
to offer the following products:
- Aluminum rolling grilles shutter
- Roller shutter window
- Windproof roller shutter doors (steel and aluminum)
- Residential and industrial Sectional door
- And more
FAQ of Transparent Polycarbonate Rolling Shutter Doors
Q: What is a transparent polycarbonate rolling shutter?
A: A transparent polycarbonate rolling shutter is a type of
security door made of interlocking polycarbonate panels that roll
up into a compact coil. These doors provide high visibility while
offering security and protection from unauthorized access,
vandalism, and environmental elements.
Q: What are the advantages of transparent polycarbonate rolling
shutters?
A: Some advantages of transparent polycarbonate rolling shutters
include:
- High visibility: They allow natural light to pass through,
enhancing visibility and reducing the need for artificial lighting.
- Impact resistance: The polycarbonate panels used in these shutters
are highly impact-resistant, making them difficult to break or
damage.
- Weather resistance: They are designed to withstand various weather
conditions, including UV radiation, corrosion, moisture, and
chemicals.
- Thermal insulation: Transparent polycarbonate shutters offer good
thermal insulation, helping to regulate temperature and reduce
energy consumption.
- Customizability: These shutters can be customized in terms of size,
color, and additional features to meet specific requirements.
Q: Are transparent polycarbonate rolling shutters secure?
A: Yes, transparent polycarbonate rolling shutters provide a high
level of security. The polycarbonate panels used in their
construction are impact-resistant and shatterproof, deterring
unauthorized access and protecting against break-ins and vandalism.
These shutters can also be fitted with additional security
features, such as locking systems and access control.
Q: Can transparent polycarbonate rolling shutters be motorized?
A: Yes, transparent polycarbonate rolling shutters can be equipped
with motorized systems for easy and convenient operation. With the
push of a button or remote control, the shutters can be opened and
closed smoothly. Motorization allows for quicker and more efficient
access to the premises.
Q: How are transparent polycarbonate rolling shutters maintained?
A: Transparent polycarbonate rolling shutters are relatively low
maintenance. The polycarbonate panels are easy to clean and can be
wiped down with a mild detergent and water. Regular inspections for
any damage or wear are recommended, and any necessary repairs
should be carried out by a professional.
Q: Can transparent polycarbonate rolling shutters be installed in
different locations?
A: Yes, transparent polycarbonate rolling shutters can be installed
in various locations, including commercial buildings, industrial
facilities, retail spaces, hospitality venues, and residential
properties. They are versatile and can be customized to fit
different sizes and architectural styles.
These are just a few frequently asked questions about transparent
polycarbonate rolling shutters. If you have more specific queries
or require additional information, feel free to ask.
