Automatic Commercial Transparent Polycarbonate Roller Shutter
Plastic/Crystal Roller Shutter for Commercial Shop
Basic Info
| Item number | PC300 |
| Materials | Polycarbonate slats + Stainless steel tubes |
| Max width | 12000 mm |
| Max height | 9000 mm |
| MOQ | 1 SET |
| Color | Transparent, frosted, colorful for polycarbonate slats, any RAL
color for aluminum profiles |
| Sample | Free sample is available |
| Applications | Retail spaces, Residential properties, Public buildings, Hospitality industry, Shopping mall, Showroom, Fashion shops, Airport, Banks, Club bars, And more |
Overview
They are not only designed to provide protection and security to
your business, they are also designed to offer ultimate excellent
visibility. When you desire to shut the business for the day or for
an extended period, this roller shutter just says no to would-be
burglars and curiosity seekers, additionally, it keep showing your
business due to it's transparent curtain.
Polycarbonate is an incredibly useful plastic for applications
requiring transparency and high impact resistance. Our transparent
polycarbonate roll up shutter door not only bring you high
security, but also offer excellent transparency and visibility.
Applications
Museums, galleries, libraries, and other public buildings can
benefit from the security and high visibility provided by
transparent polycarbonate rolling shutters. These shutters can also
reduce heating and cooling costs, contributing to the
sustainability and energy efficiency of the building.
Hotels, restaurants, and bars are other industries where
transparent polycarbonate rolling shutters can find useful
applications. These shutters can enhance the security of the
building during off-hours while still maintaining an open,
welcoming atmosphere. They're also an excellent choice for outdoor
spaces such as patios and balconies, providing security and shelter
without sacrificing the view.
Key Features / Benefits
Polycarbonate (PC) plastics are a naturally transparent amorphous
thermoplastic, as a naturally transparent amorphous thermoplastic,
the pliability of the material arrows around 80-90% transparency,
In addition, the raw material polycarbonate allows for the internal
transmission of light nearly in the same capacity as glass. With
the excellent visibility, no matter you are a business owner or
designer, you can always benefit from it.
Safety and security are always the most important factors when
choosing a roller shutter door. When talking about polycarbonate
roller shutter door, many people think it's weak and easy to break
in. It's true that it looks like glass, which is transparent and
easy to break, however, the Impact resistance performance of
polycarbonate is 200 times stronger as ordinary glass, 30 times as
organic glass, this physical characteristics makes the
polycarbonate roller shutter door extremely strong, it won’t be
cracked or break under normal attack or stealing tools.
Polycarbonates are a group of thermoplastic polymers containing
carbonate groups in their chemical structures. Listed below are
some parameters shows its durability and weather ability:
* Lower working temperature: −40 °C (−40 °F)
* Upper working temperature: 115–130 °C (239–266 °F)
* Heat deflection temperature: 0.45 MPa: 140 °C (284 °F); 1.8 MPa:
128–138 °C (262–280 °F)
* Linear thermal expansion coefficient (α): 65–70 × 10−6/K
* Thermal conductivity (k) at 23 °C: 0.19–0.22 W/(m·K)
* Thermal diffusivity (a) at 25 °C: 0.144 mm²/s
In a word, the polycarbonate still keep the physical indicators
stability in the range of -40 to 130℃, the outdoor service life is
around 20 years, and the indoor
Drawings
1, Rubber weather seal
2, Aluminum bottom rail
3, Polycarbonate slats / links
4, Stainless steel tubes / pipes
5, Plastic end caps / clips / cover
6, Aluminum guide rail
7, Brush strips
8, Solid galvanized steel slats
9, Steel end clips
10, Connecting slats
11, shaft / axle / barrel
12, bearing
13, left side plate / bracket
14, right side plate / bracket
15, side motor
16, push button
17, remote control
18, manual hoist chain
Technical specifications
Curtain:The polycarbonate rolling shutter itself consists of horizontal
strips of virtually unbreakable crystal clear High-quality polycarbonate, inserted by stainless steel tubes, with plastic end clips/cover
fixed on both sides to prevent the curtain from lateral movement.
We offer a variety of polycarboante slats / links, such as
300*115*3 mm, Width*height*thickness, 300*115*2.3 mm,
Width*height*thickness. Actually we can custom made any design as
your requirement with our CNC machine.
We are using imported high quality PC materials (LOTTE from South Korea or Makrolon from Germany) to produce polycarbonate roller shutter door slats.
Bottom Rail: Extruded aluminum profiles, with rubber weather seal to stop the
dust, rain, insects going inside.
Guide Rail: custom design extruded aluminum profiles, with brush strips to
make the curtain runs more quietly and smoothly.
Shaft / Axle: made of galvanized steel instead of iron with painting, to make it
good looking and prevent the shaft from getting rust. Diameter:5
inches(side motor), 6 inches, 8 inches, 10 inches, Wall thickness:
1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm.
Mullions: Removable center mullions are available on request for
applications were shutter opening can not be covered by one shutter
door.
Side plates / Brackets: The brackets are manufactured from mild steel and supplied in
premed finish. The brackets can only be installed on a structural fixing surface
such as concrete, steel columns, steel angles are normally used to
supported the brackets if needed.With plates slotted to accommodate shaft or motor mounting.
Operation way:
- Manual operation: Spring box system, Torsion spring system, Hoist
chain system, Wire rope system
- Automatic operation: Side motors, Tubular motors. The shutter doors
could be open/close by remote controls, switch button, App, etc.
Optional:
Punched / Frosted / Colorful polycarbonate slats are available
Surface finishing for aluminum profiles: Anodizing, Powder coating,
Electrophoresis coating
Shutter box / hood cover
Safety sensor (photocell)
UPS
Safety brake
Video surveillance

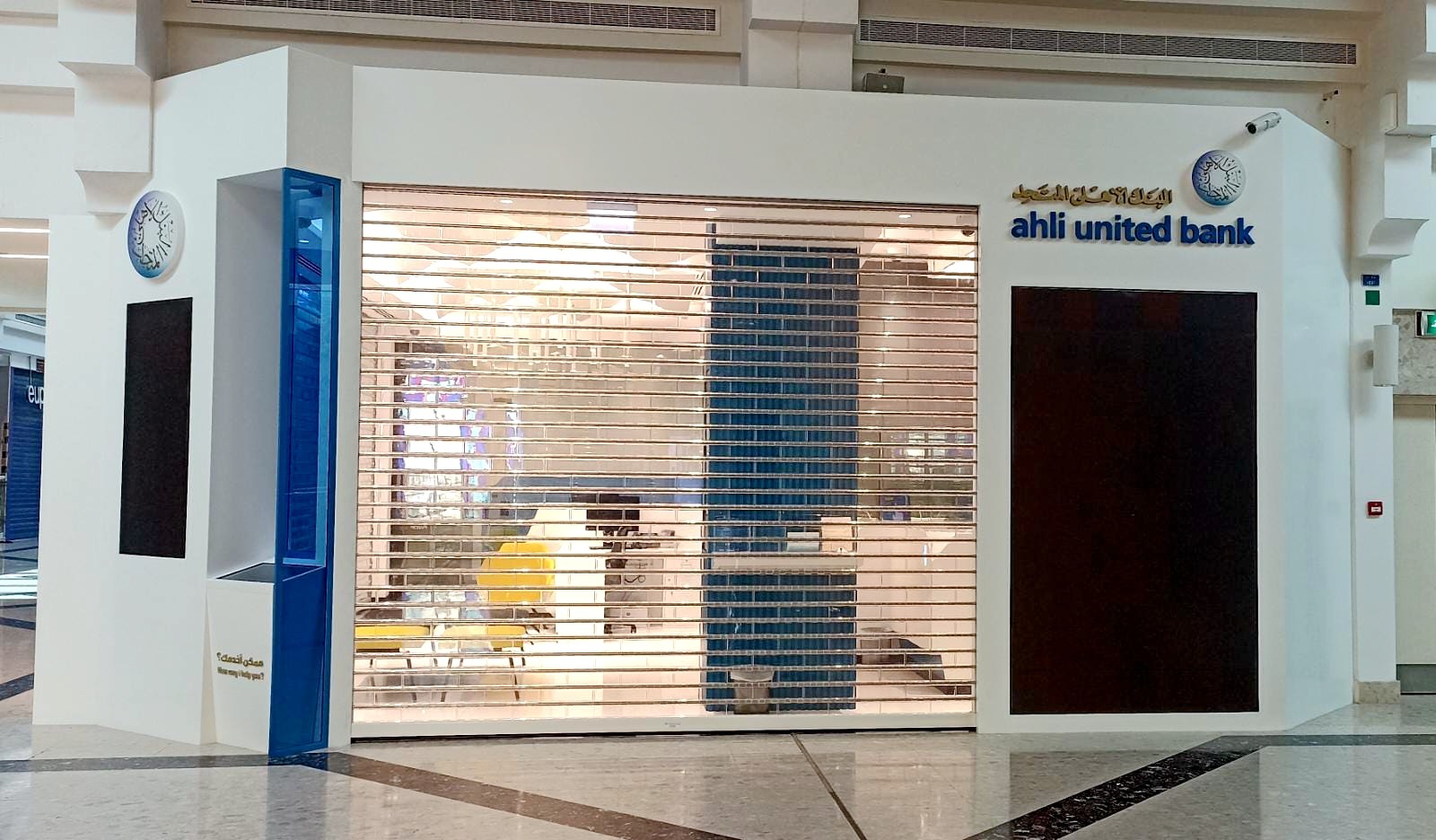

Project Photo Gallery
Our certificates
Warranty
♦ We offer 5 years warranty for our roller shutters and 10 years
for motors
♦ We shall not responsible for damages caused by improper use
♦ If there is a proven manufacturing defect in any of the items
supplied within the warranty period, the defective units shall be
supplied and replaced at our cost.
FAQ of Transparent Polycarbonate Rolling Shutter Doors
Q: What is a transparent polycarbonate rolling shutter?
A: A transparent polycarbonate rolling shutter is a type of
security door made of interlocking polycarbonate panels that roll
up into a compact coil. These doors provide high visibility while
offering security and protection from unauthorized access,
vandalism, and environmental elements.
Q: What are the advantages of transparent polycarbonate rolling
shutters?
A: Some advantages of transparent polycarbonate rolling shutters
include:
- High visibility: They allow natural light to pass through,
enhancing visibility and reducing the need for artificial lighting.
- Impact resistance: The polycarbonate panels used in these shutters
are highly impact-resistant, making them difficult to break or
damage.
- Weather resistance: They are designed to withstand various weather
conditions, including UV radiation, corrosion, moisture, and
chemicals.
- Thermal insulation: Transparent polycarbonate shutters offer good
thermal insulation, helping to regulate temperature and reduce
energy consumption.
- Customizability: These shutters can be customized in terms of size,
color, and additional features to meet specific requirements.
Q: Are transparent polycarbonate rolling shutters secure?
A: Yes, transparent polycarbonate rolling shutters provide a high
level of security. The polycarbonate panels used in their
construction are impact-resistant and shatterproof, deterring
unauthorized access and protecting against break-ins and vandalism.
These shutters can also be fitted with additional security
features, such as locking systems and access control.
Q: Can transparent polycarbonate rolling shutters be motorized?
A: Yes, transparent polycarbonate rolling shutters can be equipped
with motorized systems for easy and convenient operation. With the
push of a button or remote control, the shutters can be opened and
closed smoothly. Motorization allows for quicker and more efficient
access to the premises.
Q: How are transparent polycarbonate rolling shutters maintained?
A: Transparent polycarbonate rolling shutters are relatively low
maintenance. The polycarbonate panels are easy to clean and can be
wiped down with a mild detergent and water. Regular inspections for
any damage or wear are recommended, and any necessary repairs
should be carried out by a professional.
Q: Can transparent polycarbonate rolling shutters be installed in
different locations?
A: Yes, transparent polycarbonate rolling shutters can be installed
in various locations, including commercial buildings, industrial
facilities, retail spaces, hospitality venues, and residential
properties. They are versatile and can be customized to fit
different sizes and architectural styles.
These are just a few frequently asked questions about transparent
polycarbonate rolling shutters. If you have more specific queries
or require additional information, feel free to ask.
