100% transparent polycarbonate rolling shutter for commercial shops
Basic Info
| Item number | PC300 |
| Materials | Polycarbonate slats + Stainless steel tubes |
| Max width | 12000 mm |
| Max height | 9000 mm |
| MOQ | 1 SET |
| Color | Transparent, frosted, colorful for polycarbonate slats, any RAL
color for aluminum profiles |
| Sample | Free sample is available |
| Applications | Retail spaces, Residential properties, Public buildings, Hospitality industry, Shopping mall, Showroom, Fashion shops, Airport, Banks, Club bars, And more |
Overview
In the world of commercial and residential spaces, security,
functionality, and aesthetics play a vital role. When it comes to
choosing the right solution for entrance security, transparent
polycarbonate roller shutter doors offer a unique combination of
strength, visibility, and durability.
"As clear as glass, as strong as steel" is the one sentence
description for our transparent polycarbonate rolling shutters. It
will be a perfect choice for the shop fronts, storefronts where
need security as well as transparency.
They are not only designed to provide protection and security to
your business, they are also designed to offer ultimate excellent
visibility. When you desire to shut the business for the day or for
an extended period, this roller shutter just says no to would-be
burglars and curiosity seekers, additionally, it keep showing your
business due to it's transparent curtain.
Polycarbonate is an incredibly useful plastic for applications
requiring transparency and high impact resistance. Our transparent
polycarbonate roll up shutter door not only bring you high
security, but also offer excellent transparency and visibility.
Applications
- Retail spaces
Residential properties
Public buildings
Hospitality industry
Shopping mall
Showroom
Fashion shops
Airport
Banks
Club bars
And more
Key Features / Benefits
- Excellent Visibility
- Safety and Security
- Durability / Weather resistance
- Flexibility
- UV protection
- Energy saving
- Sound insulation
- Advertising / display effect
- Environment-friendly
- Fire retardant and self-extinguishing
- Up to 12 meter width
- Easy to maintain
Drawings
Technical specifications
Curtain:The polycarbonate rolling shutter itself consists of horizontal
strips of virtually unbreakable crystal clear High-quality polycarbonate, inserted by stainless steel tubes, with plastic end clips/cover
fixed on both sides to prevent the curtain from lateral movement.
We offer a variety of polycarboante slats / links, such as
300*115*3 mm, Width*height*thickness, 300*115*2.3 mm,
Width*height*thickness. Actually we can custom made any design as
your requirement with our CNC machine.
We are using imported high quality PC materials (LOTTE from South Korea or Makrolon from Germany) to produce polycarbonate roller shutter door slats.
Bottom Rail: Extruded aluminum profiles, with rubber weather seal to stop the
dust, rain, insects going inside.
Guide Rail: custom design extruded aluminum profiles, with brush strips to
make the curtain runs more quietly and smoothly.
Shaft / Axle: made of galvanized steel instead of iron with painting, to make it
good looking and prevent the shaft from getting rust. Diameter:5
inches(side motor), 6 inches, 8 inches, 10 inches, Wall thickness:
1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm.
Mullions: Removable center mullions are available on request for
applications were shutter opening can not be covered by one shutter
door.
Side plates / Brackets: The brackets are manufactured from mild steel and supplied in
premed finish. The brackets can only be installed on a structural fixing surface
such as concrete, steel columns, steel angles are normally used to
supported the brackets if needed.With plates slotted to accommodate shaft or motor mounting.
Operation way:
- Manual operation: Spring box system, Torsion spring system, Hoist
chain system, Wire rope system
- Automatic operation: Side motors, Tubular motors. The shutter doors
could be open/close by remote controls, switch button, App, etc.
Optional:
Punched / Frosted / Colorful polycarbonate slats are available
Surface finishing for aluminum profiles: Anodizing, Powder coating,
Electrophoresis coating
Shutter box / hood cover
Safety sensor (photocell)
UPS
Safety brake
Video surveillance

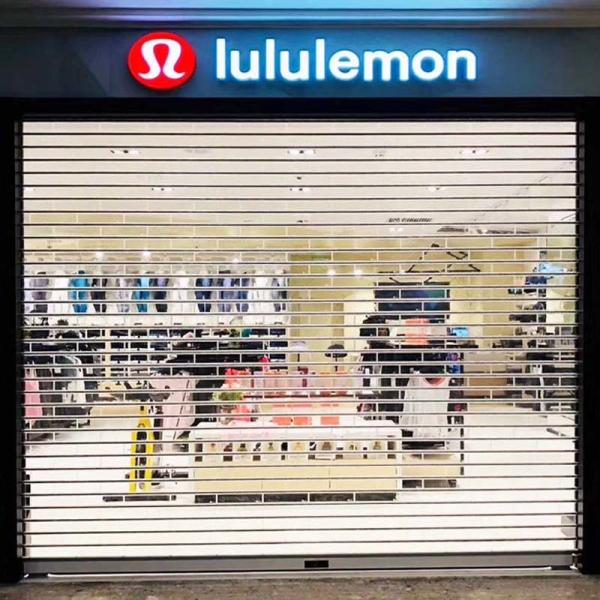

Project Photo Gallery
Conclusion:
Transparent polycarbonate roller shutter doors offer an innovative
and reliable solution for entrance security while allowing natural
light to enhance visibility. With their exceptional strength,
durability, and versatility, these doors provide a wide range of
benefits for commercial and industrial spaces. From optimal
security and thermal insulation to customizability and easy
operation, these doors are designed to meet the ever-evolving
demands of modern business environments. By choosing transparent
polycarbonate roller shutter doors, you can enhance the aesthetic
appeal, functionality, and security of your premises.
In conclusion, the transparent polycarbonate roller shutter door is
a state-of-the-art product that combines advanced security features
with sleek aesthetics, convenience, and energy efficiency. With its
versatile design options, ease of use, and low maintenance
requirements, it offers an ideal solution for both residential and
commercial spaces. Upgrade your security systems with the
transparent polycarbonate roller shutter door and experience the
future of protection and convenience.
FAQ of Transparent Polycarbonate Rolling Shutter Doors
Q: What is a transparent polycarbonate rolling shutter?
A: A transparent polycarbonate rolling shutter is a type of
security door made of interlocking polycarbonate panels that roll
up into a compact coil. These doors provide high visibility while
offering security and protection from unauthorized access,
vandalism, and environmental elements.
Q: What are the advantages of transparent polycarbonate rolling
shutters?
A: Some advantages of transparent polycarbonate rolling shutters
include:
- High visibility: They allow natural light to pass through,
enhancing visibility and reducing the need for artificial lighting.
- Impact resistance: The polycarbonate panels used in these shutters
are highly impact-resistant, making them difficult to break or
damage.
- Weather resistance: They are designed to withstand various weather
conditions, including UV radiation, corrosion, moisture, and
chemicals.
- Thermal insulation: Transparent polycarbonate shutters offer good
thermal insulation, helping to regulate temperature and reduce
energy consumption.
- Customizability: These shutters can be customized in terms of size,
color, and additional features to meet specific requirements.
Q: Are transparent polycarbonate rolling shutters secure?
A: Yes, transparent polycarbonate rolling shutters provide a high
level of security. The polycarbonate panels used in their
construction are impact-resistant and shatterproof, deterring
unauthorized access and protecting against break-ins and vandalism.
These shutters can also be fitted with additional security
features, such as locking systems and access control.
Q: Can transparent polycarbonate rolling shutters be motorized?
A: Yes, transparent polycarbonate rolling shutters can be equipped
with motorized systems for easy and convenient operation. With the
push of a button or remote control, the shutters can be opened and
closed smoothly. Motorization allows for quicker and more efficient
access to the premises.
Q: How are transparent polycarbonate rolling shutters maintained?
A: Transparent polycarbonate rolling shutters are relatively low
maintenance. The polycarbonate panels are easy to clean and can be
wiped down with a mild detergent and water. Regular inspections for
any damage or wear are recommended, and any necessary repairs
should be carried out by a professional.
Q: Can transparent polycarbonate rolling shutters be installed in
different locations?
A: Yes, transparent polycarbonate rolling shutters can be installed
in various locations, including commercial buildings, industrial
facilities, retail spaces, hospitality venues, and residential
properties. They are versatile and can be customized to fit
different sizes and architectural styles.
These are just a few frequently asked questions about transparent
polycarbonate rolling shutters. If you have more specific queries
or require additional information, feel free to ask.
