AC 1500kg Explosion-Proof Roller Shutter Motor/Fire And
Explosion-Proof Rolling Door Machine/Explosion-Proof Door Opener
PRODUCT DESCRIPTIONS
LTS explosion proof roller shutter motor is suitable for gas
stations,chemical plant and so on where
need to door of explosion-proof places. Action button switch can
automatically complete the shutter
open or closed. In special conditions (power outages, fire and
electrical fault ) can be manipulated
manual control.
PRODUCT FEATURES / ADVANTAGES / BENEFITS
Stylish design, up-to-date Technology
Overheat protection and overload protection
Low noise
Easy manual operation when power failure
Precise/accurate Limit switch
Easy to install and adjust
Low maintenance
Security, with anti-fall protection device
Long service life, Durable
No spark, antistatic, make it become a practical and safe products
EXPLOSION PROOF CONTORL BOX
TECHNICAL SPECIFICATIONS
| Model | Rated voltage / Frequency | Rated Power(W) | Max Lifting (kgs/f) | Rated Current(A) | Rated speed (r/min) | Max lifting height | Ambient temperature range |
| WJBB-600-1P | 220 V / 50 Hz | 370 | 600 | 2.2 | 5.4 | 6 meters | -20°C ~ +50°C |
| WJBB-600-3P | 380V / 50 Hz | 700 | 600 | 1.4 | 5.4 | 6 meters | -20°C ~ +50°C |
| WJBB-800-3P | 380 V / 50 Hz | 800 | 800 | 1.6 | 3.9 | 9 meters | -20°C ~ +50°C |
| WJBB-1000-3P | 380V / 50 Hz | 1000 | 1000 | 2 | 3.9 | 9 meters | -20°C ~ +50°C |
| WJBB-1500-3P | 380V / 50 Hz | 1200 | 1500 | 2.3 | 3 | 9 meters | -20°C ~ +50°C |
| WJBB-2000-3P | 380 V / 50 Hz | 1300 | 2000 | 2.5 | 3 | 9 meters | -20°C ~ +50°C |
| WJBB-3000-3P | 380V / 50 Hz | 1500 | 3000 | 5 | 3.3 | 12 meters | -20°C ~ +50°C |
| WJBB-4000-3P | 380 V / 50 Hz | 3000 | 4000 | 7.8 | 3.2 | 12 meters | -20°C ~ +50°C |
INSTALLATION DIAGHRAM
ADVANCED PRODUCTION TECHNOLOGY AND PROCESS

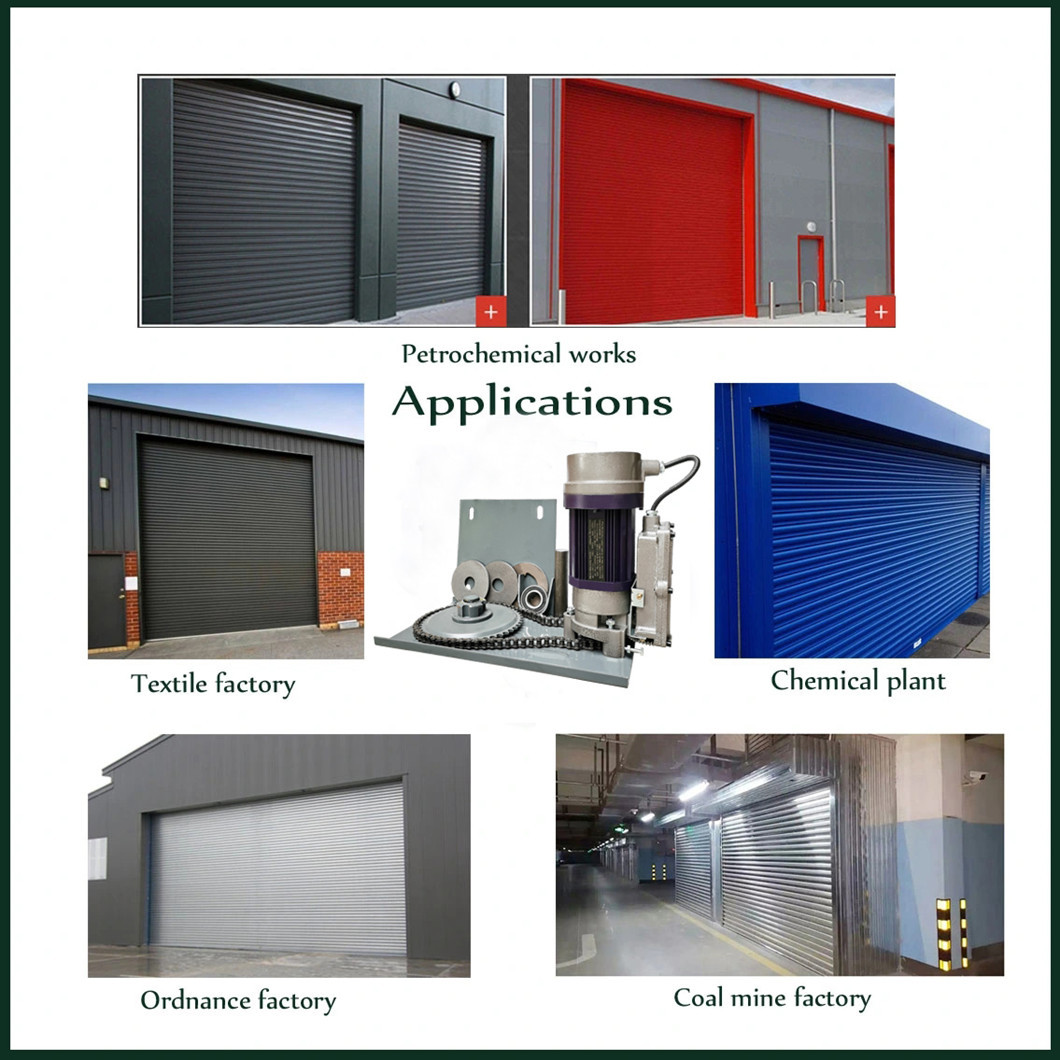

APPLICATION
LTS explosion proof roller shutter motor is suitable for gas
stations,chemical plant and so on where
need to door of explosion-proof places. Action button switch can
automatically complete the shutter
open or closed. In special conditions (power outages, fire and
electrical fault ) can be manipulated
manual control.
CERTIFICATIONS
