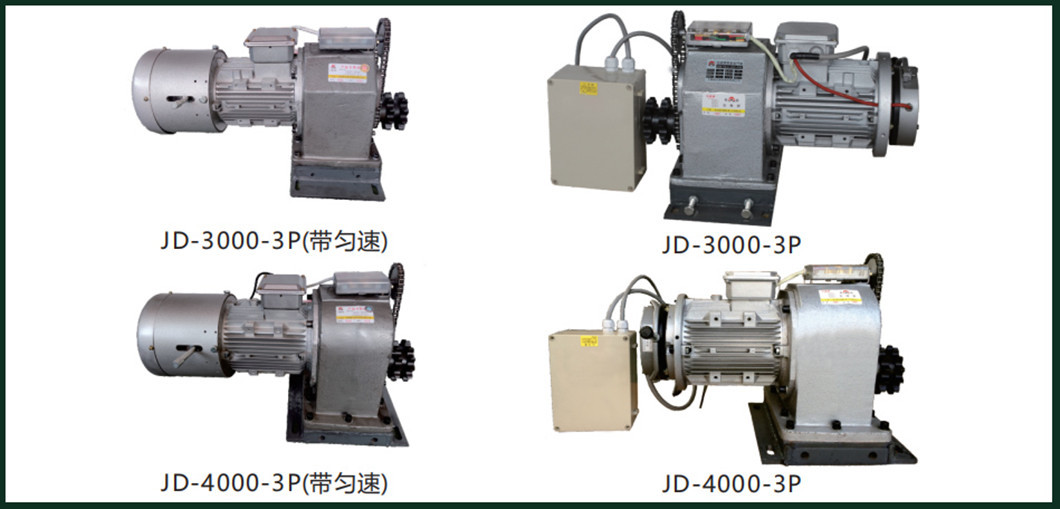

3000kg Heavy Duty Roller Shutter Motor / Heavy Duty Rolling Door
Motor/Automatic Roll Up Door Motor/
PRODUCT DESCRIPTIONS
LTS's AC roller shutter motors are widely used in extra large roller shutter doors in commercial,
industrial and residential applications, such as shopping malls,
retail stores, banks, factories,
warehouses, and garages.
Our motors and accessories are always manufactured in our modern
ISO and SGS-certificated
factory, with a great emphasis on Long service life, up-to-date
Technology, and Extreme Security.
PRODUCT FEATURES / ADVANTAGES / BENEFITS
Widely in extra large roller shutter doors
Stylish design, up-to-date Technology
Overheat protection and overload protection
Low noise
Easy manual operation when power failure
Precise/accurate Limit switch
Easy to install and adjust
Low maintenance
Security, with an anti-fall protection device
Long service life, Durable
TECHNICAL SPECIFICATIONS
| Model | Rated voltage / Frequency | Input power | Rated output torque | Max lifting capacity | Rated current | Rated output speed | Max lifting height | Continuous working time | Ambient temperature range |
| Single Phase |
| LTS-300-1P | 220 V / 50 Hz | 600 W | 168 N.m | 300 KGS | 2.8 A | 5 r/min | 5 meters | 7 Min | -20°C ~ +50°C |
| LTS-600-1P | 220 V / 50 Hz | 710W | 412N.m | 600 KGS | 3.3 A | 4.8 r/min | 6 meters | 7 Min | -20°C ~ +50°C |
| LTS-800-1P | 220 V / 50 Hz | 920W | 647 N.m | 800 KGS | 4.7 A | 4 r/min | 7 meters | 7 Min | -20°C ~ +50°C |
| LTS-1000-1P | 220 V / 50 Hz | 1013W | 809 N.m | 1000 KGS | 4.9 A | 3.5 r/min | 8 meters | 7 Min | -20°C ~ +50°C |
| Three Phases |
| LTS-1000-3P | 380 V / 50 Hz | 780 W | 809 N.m | 1000 KGS | 2.8 A | 3.5 r/min | 8 meters | 15 Min | -20°C ~ +50°C |
| LTS-1300-3P | 380 V / 50 Hz | 1050W | 1401 N.m | 1300 KGS | 3.2 A | 4.4 r/min | 7 meters | 15 Min | -20°C ~ +50°C |
| LTS-1500-3P | 380 V / 50 Hz | 1250W | 1617 N.m | 1500 KGS | 3.8 A | 5.2 r/min | 8 meters | 15 Min | -20°C ~ +50°C |
| LTS-2000-3P | 380 V / 50 Hz | 1350W | 2450 N.m | 2000 KGS | 4.1 A | 3.6 r/min | 12 meters | 15 Min | -20°C ~ +50°C |
| LTS-3000-3P | 380 V / 50 Hz | 1500W | 3450 N.m | 3000 KGS | 4 A | 3.3 r/min | 12 meters | 30 Min | -20°C ~ +50°C |
| LTS-4000-3P | 380 V / 50 Hz | 3000W | 5500 N.m | 4000 KGS | 7.8A | 3.2 r/min | 12 meters | 30 Min | -20°C ~ +50°C |
OUR MANAGEMENT / QUALITY CONTROL
TESTING INSTRUMENT
Strict quality control to ensure the quality of each product
APPLICATIONS
CERTIFICATIONS
