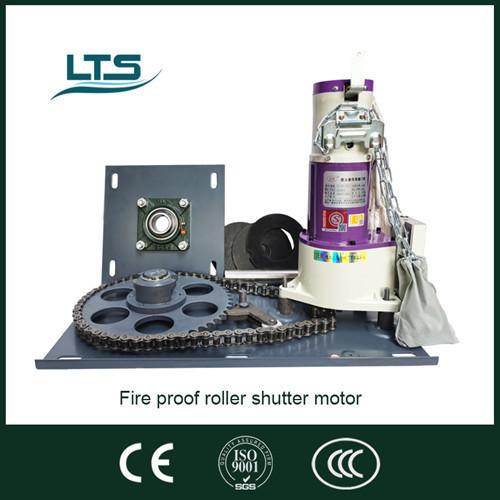

Ac1000kg Fire Rated Roller Shutter Motor/Fire Proof Door
Machine/Fire Protect Shutter Motor/Fire Rated Door Opener
PRODUCT DESCRIPTIONS
LTS fire-rated roller shutter motor supporting the use of an
intelligent fire shutter controller,
the event of a fire within the building, equipping fire shutter is
closed, the smoke of the
partition fire risk area, fire intelligent drive control, widely
used in buildings, garages,
shopping malls, factories, warehouses, docks, airports, and other
construction sites,
supporting the ideal of the modern building fire safety.
PRODUCT FEATURES / ADVANTAGES / BENEFITS
Stylish design, up-to-date Technology
Overheat protection and overload protection
Low noise
Easy manual operation when power failure
Precise/accurate Limit switch
Easy to install and adjust
Low maintenance
Security, with an anti-fall protection device
Long service life, Durable
TECHNICAL SPECIFICATIONS
| Model | Rated voltage / Frequency | Input power | Rated output torque | Max lifting capacity | Rated current | Rated output speed | Max lifting height | Continuous working time | Ambient temperature range |
| Three Phases |
| LTS-600-3P | 380 V / 50 Hz | 710W | 412N.m | 600 KGS | 3.3 A | 4.8 r/min | 6 meters | 7 Min | -20°C ~ +50°C |
| LTS-800-3P | 380 V / 50 Hz | 780W | 647 N.m | 800 KGS | 4.7 A | 4 r/min | 7 meters | 7 Min | -20°C ~ +50°C |
| LTS-1000-3P | 380 V / 50 Hz | 780 W | 809 N.m | 1000 KGS | 2.8 A | 3.5 r/min | 7 meters | 15 Min | -20°C ~ +50°C |
| LTS-1300-3P | 380 V / 50 Hz | 1050W | 1401 N.m | 1300 KGS | 3.2 A | 4.4 r/min | 7 meters | 15 Min | -20°C ~ +50°C |
| LTS-1500-3P | 380 V / 50 Hz | 1250W | 1617 N.m | 1500 KGS | 3.8 A | 5.2 r/min | 8 meters | 15 Min | -20°C ~ +50°C |
| LTS-2000-3P | 380 V / 50 Hz | 1350W | 2450 N.m | 2000 KGS | 4.1 A | 3.6 r/min | 12 meters | 15 Min | -20°C ~ +50°C |
| LTS-3000-3P | 380 V / 50 Hz | 1500W | 3450 N.m | 3000 KGS | 4 A | 3.3 r/min | 12 meters | 30 Min | -20°C ~ +50°C |
| LTS-4000-3P | 380 V / 50 Hz | 3000W | 5500 N.m | 4000 KGS | 7.8A | 3.2 r/min | 12 meters | 30 Min | -20°C ~ +50°C
|
