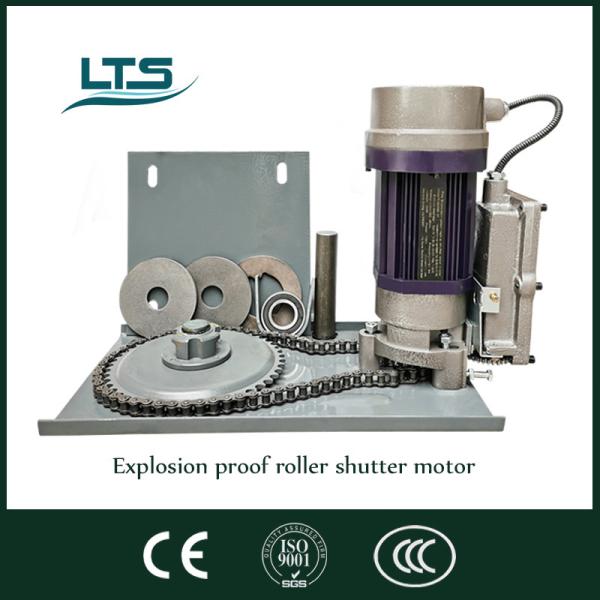

AC600kg Explosion-Proof Roller Shutter Motor/Fire And
Explosion-Proof Rolling Door Machine/Explosion-Proof Door Opener
PRODUCT DESCRIPTIONS
LTS explosion-proof roller shutter motor is suitable for gas
stations, chemical plants,
and so on where need to door of explosion-proof places. The action
button switch
can automatically complete the shutter open or closed. In special
conditions (power
outages, fire, and electrical faults), it can be manipulated with
manual control.
PRODUCT FEATURES / ADVANTAGES / BENEFITS
Stylish design, up-to-date Technology
Overheat protection and overload protection
Low noise
Easy manual operation when power failure
Precise/accurate Limit switch
Easy to install and adjust
Low maintenance
Security, with an anti-fall protection device
Long service life, Durable
No spark, antistatic, make it become a practical and safe products
FIRE RATED AND EXPLOSION-PROOF CONTROLLER
TECHNICAL SPECIFICATIONS
| Model | Rated voltage / Frequency | Rated Power (W) | Max Lifting (kgs/f) | Rated Current (A) | Rated speed (r/min) | Max lifting height | Ambient temperature range |
| WJBB-600-1P | 220 V / 50 Hz | 370 | 600 | 2.2 | 5.4 | 6 meters | -20°C ~ +50°C |
| WJBB-600-3P | 380V / 50 Hz | 700 | 600 | 1.4 | 5.4 | 6 meters | -20°C ~ +50°C |
| WJBB-800-3P | 380 V / 50 Hz | 800 | 800 | 1.6 | 3.9 | 9 meters | -20°C ~ +50°C |
| WJBB-1000-3P | 380V / 50 Hz | 1000 | 1000 | 2 | 3.9 | 9 meters | -20°C ~ +50°C |
| WJBB-1500-3P | 380V / 50 Hz | 1200 | 1500 | 2.3 | 3 | 9 meters | -20°C ~ +50°C |
| WJBB-2000-3P | 380 V / 50 Hz | 1300 | 2000 | 2.5 | 3 | 9 meters | -20°C ~ +50°C |
| WJBB-3000-3P | 380V / 50 Hz | 1500 | 3000 | 5 | 3.3 | 12 meters | -20°C ~ +50°C |
| WJBB-4000-3P | 380 V / 50 Hz | 3000 | 4000 | 7.8 | 3.2 | 12 meters | -20°C ~ +50°C |
INSTALLATION DIAGHRAM
ADVANCED PRODUCTION TECHNOLOGY AND PROCESS
APPLICATION
LTS explosion-proof roller shutter motor is suitable for gas
stations, chemical plants,
and so on where doors of explosion-proof places. The action button
switch can
automatically complete the shutter open or closed. In special
conditions (power outages,
fire, and electrical faults) can be manipulated through manual
control.
CERTIFICATIONS
