Soild Steel Rolling Shutter Door / Commercial Galvanized Steel Roll
up Door / Galvanized Steel Rolling Door for shop
Basic Info
| Material | Stainless steel |
| Position | Industry,warehouse,commercial shop |
| MOQ | 1 set |
| Certification | CCC,ISO,CE |
| Origin | Guangzhou, China |
| Color | Any RAl color |
| Sample | Available |
| Size | Can be customized (maximum width: 7m, maximum height: 7m) |
| Type of drive | Manually operated(push up and down)
Motor-operated (remote control or switch button or endless chain)
Function: Safety, theftproof, weather resistant, rustproof, sound
insulation |
Product Destription
Investing in steel roller shutters is a smart choice for anyone
looking to secure their property without breaking in. Despite being
affordable, these shutters are extremely durable and provide
excellent protection against intruders. The rigid nature of the
steel makes it difficult for opportunists to break in easily,
giving you peace of mind.
Applications

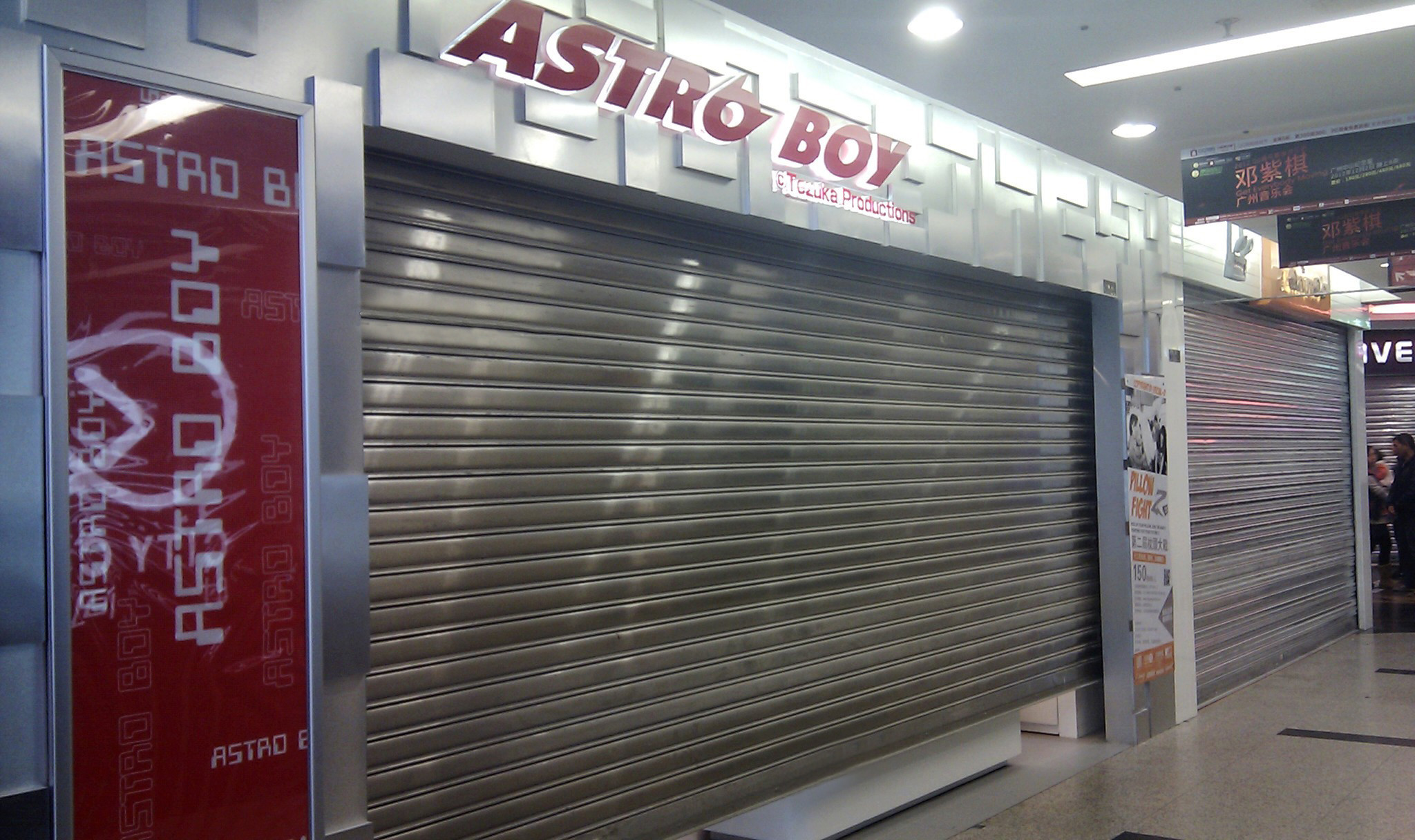

Commercial Spaces
Retail stores, shopping malls, and multiplexes benefit from the
security and aesthetic appeal of galvanized steel roller shutter
doors. These doors offer a professional nice appearance, enhancing
the overall impression of the business premises.
Residential Properties
Steel roller shutter doors are the most common choice for home
users to enhance the security and energy efficiency of their
residences. These doors provide an additional layer of protection
against break-ins and contribute to a more comfortable living
space.
Warehouses and Industrial Buildings
Steel roller shutter doors are widely used in warehouses and
industrial buildings due to their robustness and security features.
They provide easy access for loading and unloading goods, and their
durability ensures long-term operation.
Garages and Parking Lots
Steel roller shutter doors are also commonly used in garages and
parking lots. Their compact design and easy operation make them an
ideal choice for areas with limited space.
Key Features / Benefits
♦ Security/ burglar proof
♦ Strong and durable
♦ Energy saving
♦ Cost effective. Compared to other types of roller shutter doors,
galvanized steel roller shutter is way too much cheaper.
♦ Ventilation available. The galvanized steel slats could be
perforated to offer ventilation.
♦ Many color available. The natural color, white, blue, green,
cream, or any other RAL color by powder coating
♦ Easy to install
♦ Low maimaintenance
Drawings
1,Steel bottom rail
2,Plastic insert
3,Steel slat
4,Steel end clip
5,Steel punched slat
Steel guide rail
7,Steel micro-perforated slat
8,Shaft (roller drum)
9,Bearing
10,Left side plate
11,Right side plate
12,Roller shutter motor
13,Manual hoist chain
14,Switch button
15,Remote control
Technical specifications
Curtain:The rolling shutter curtain itself consists of Consisted of solid
interlockig galvanized steel slats, with steel
end clips on both sides of curtain to prevent lateral movement.
Thickness option: 0.8 mm, 1 mm, 1.2 mm
Bottom rail:
♦Material: rollformed galvanized steel
♦With plastic end caps on both sides
♦Dimension:40*70mm,50*100mm Depth*Height
Guide rail:
♦Material: rollformed galvanized steel
♦Dimension:100*60mm, Width*Depth
♦Thickness available: 1.2mm, 1.5mm
♦Windproof guide rails are available if needed
Shaft / Axle:
♦Material: galvanized steel
♦Diameter: 6 inches, 8 inches, 10 inches
♦Wall thickness: 2 mm, 2.5 mm, 3 mm, 4 mm
Mullions: Removable center mullions are available on requiest for
applications were shutter opening
can not be covered by one shutter door.
Side plates / brackets
♦The brackets are manufactured from mild steel and supplied in
premed finish
♦The brackets can only be installed on a structural fixing surface
such as concete, steel columns, steel
angles are normally used to supported the brackets if needed
♦With plates slotted to accommodate shaft or motor mounting.
Operation way:
♦Manual operation by hand or hook (push up & push down)
♦Manual operation by Chain system
♦Automatic operation with motor(remote controls, switch button)
Optional:
♦Shutter box / hood cover
♦Perforated slats, punched slats are available if needed
♦Wicket door
Color Options
Project Photo Gallery
Certification
FAQ of Steel Roll Up Shutter Door
- What are your main steel door products?
A: Our main steel door products are insulated sectional garage
doors, industry door. We can offer different materials such as
polyurethane sandwich panel, aluminum profile with tempered glass,
solid wood, aluminum sheet, laser cut design, and other new
materials available.
- What is the delivery time?
A: 20 days for the standard colors and 30 days for the customized.
Also it depends on the specifications and quantity each order.
Shipment time depends on the location of our customers.
- What is your payment items?
A: Normally we accept 30% for deposit by T/T and the balance would
be arranged before delivery. If you have any other suggestion,
please contact with us.
- Can we place one or two sets for trial?
A: Yes of course, this is the better way of quality check. Also if
you don't required one whole set, we have small sample in stock as
well, it is free of charge, you just need to handle with the
freight. It is a good way to show the sincerity for both of us.
- How can I know the price exactly?
A: The price is based on your specific requirements, it is better
to provide as much as possible information such as color, size,
quantity, market location, sales patterns, all of these would be of
help us to quote the exact price.
- Can I order components instead of the full set of door?
A: Yes, as a factory we welcome business clients purchasing
components of the door, such as panels, hardware's, motors, etc.,
to maximize the advantage of our mutual parties.
