Automatic Rolling Roller Roll Up shutter Industrial Pull Cord rapid
action pvc door remote control High Speed Door
Basic Info
| Material | PVC |
| Position | Industry |
| MOQ | 1 set |
| Certification | CCC,ISO,CE |
| Origin | Guangzhou, China |
| Color | Original color or other RAL colors |
| Sample | available |
Product Destription
Polycarbonates are a group of thermoplastic polymers containing
carbonate groups in their chemical structures. Listed below are
some parameters shows its durability and weather ability:
* Lower working temperature: −40 °C (−40 °F)
* Upper working temperature: 115–130 °C (239–266 °F)
* Heat deflection temperature: 0.45 MPa: 140 °C (284 °F); 1.8 MPa:
128–138 °C (262–280 °F)
* Linear thermal expansion coefficient (α): 65–70 × 10−6/K
* Thermal conductivity (k) at 23 °C: 0.19–0.22 W/(m·K)
* Thermal diffusivity (a) at 25 °C: 0.144 mm²/s
In a word, the polycarbonate still keep the physical indicators
stability in the range of -40 to 130℃, the outdoor service life is
around 20 years, and the indoor life is around 30 years.
Features
Dust-proof
Insects-proof
High efficient
Energy-saving
Application
High speed doors are widely used in belowed applications:
electronic, Precision instrumentand machinery, Medicine, Food,
Printing, Packing, Car production, Air shower, Cleaningworkshop,
Warehouse logistics, Welding, Surface finising (Powder coating),
which has highrequirement of sanitary condition.
Specification
Specification for Controller
| Model | A2-DC1 | |
| Enclosure material | SPCC | |
| Dimension(L*W*H) | 340x195x95(125)(include E-STOP) | mm |
| Installation method | Vertical installation without vibration | |
| Power supply | 1N~200-240 | V |
| Power frequency | 50/60 | Hz |
| Rate output power | 1.5 | KW |
| External power supply | 24 | VDC |
| 0.4 | A |
| Ambient temperature | -10～+50 | ℃ |
| Storage temperature | -25～+55 | ℃ |
| Ambient humidity | 30%-85%, No condensation | |
| Place of use | Indoor, no direct sunlight, no dust, corrosive gas, oil mist, water
vapor, etc. |
| Weight(net) | 3.0 | Kg |
Specification for Motor
| Model | A2-PE200 | A2-PE500 | |
| Dimension(L*W*H) | 440x110x180 | 522x130x200 | mm |
| Rated Output Power | 0.75 | 1.5 | KW |
| Rated Speed | 2,500 | 2000 | RPM |
| Rated Torque | 2.86 | 7.2 | Nm |
| Power supply | 1N ~ AC200-240 | V |
| Power frequency | 50/60 | Hz |
| Power current | 6.5 | 13 | A |
| Ambient temperature | -10～+40 1) | ℃ |
| Storage temperature | -25～+55 | ℃ |
| Ambient humidity | 30%-85%, No condensation | |
| IP degree | IP54 | |
| Limit Mode | Absolute Encoder, Proximity switch |
| Self Locking Mode | Electro Mechanical Brake |
| Manual Release | Handle |
| Weight(net) | 10.2 2) | 17 3) | Kg |
1)When using a temperature range of -20~-10℃ and +40~+50℃ use half
of rated power output.
2)Weight includes RV50 reducer.
3)Weight includes RV63 reducer.
Drawings
bluetooth
Colors options

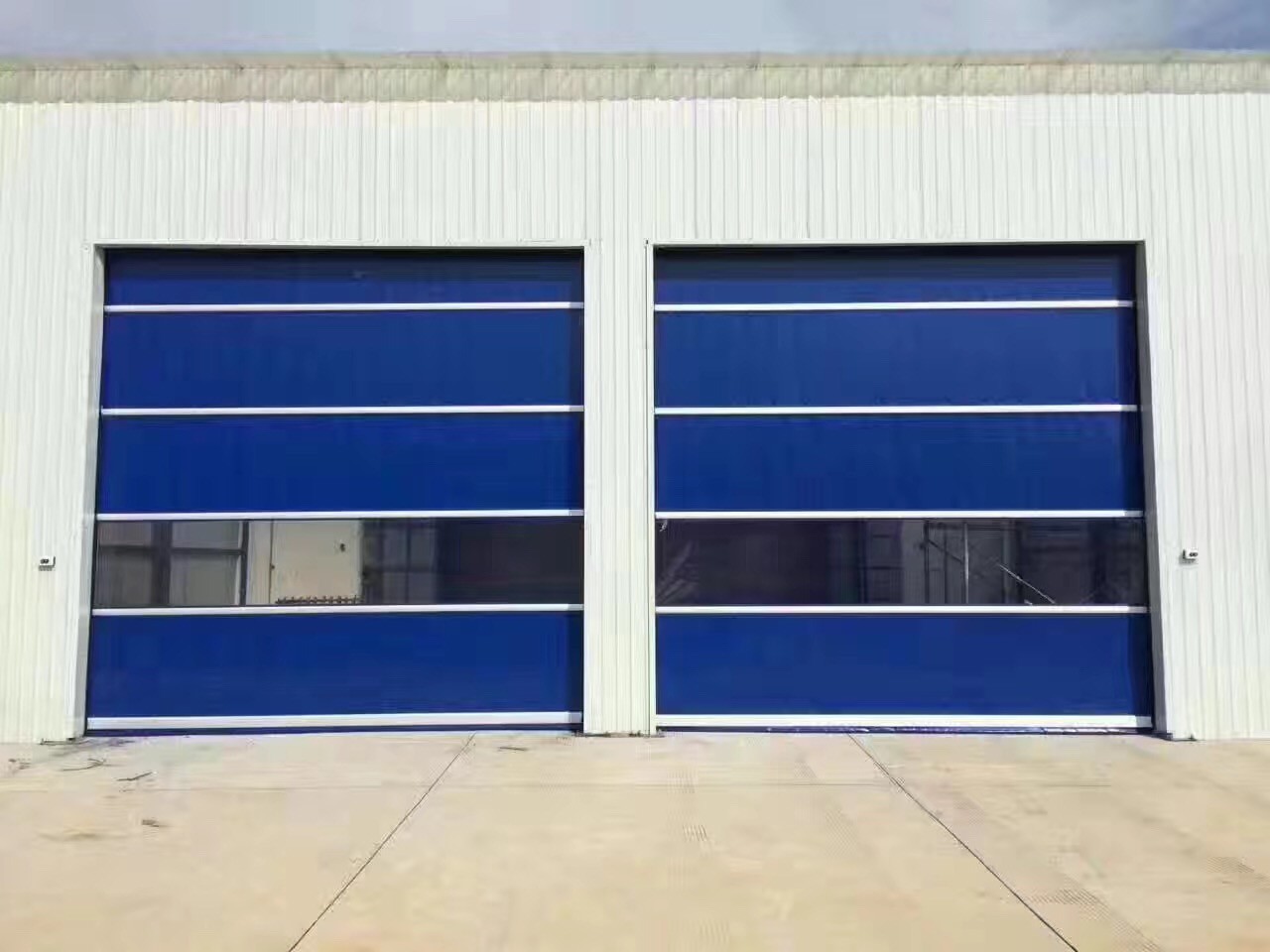

Project Photo Gallery
Factory
Certification
FAQ of High Speed Door
- What are your main PVC door products?
A: Our main PVC door products are insulated sectional industry
door. We can offer different materials such as polyurethane
sandwich panel, aluminum profile with tempered glass, solid wood,
aluminum sheet, laser cut design, and other new materials
available.
- What is the delivery time?
A: 20 days for the standard colors and 30 days for the customized.
Also it depends on the specifications and quantity each order.
Shipment time depends on the location of our customers.
- What is your payment items?
A: Normally we accept 30% for deposit by T/T and the balance would
be arranged before delivery. If you have any other suggestion,
please contact with us.
- Can we place one or two sets for trial?
A: Yes of course, this is the better way of quality check. Also if
you don't required one whole set, we have small sample in stock as
well, it is free of charge, you just need to handle with the
freight. It is a good way to show the sincerity for both of us.
- How can I know the price exactly?
A: The price is based on your specific requirements, it is better
to provide as much as possible information such as color, size,
quantity, market location, sales patterns, all of these would be of
help us to quote the exact price.
- Can I order components instead of the full set of door?
A: Yes, as a factory we welcome business clients purchasing
components of the door, such as panels, hardware's, motors, etc.,
to maximize the advantage of our mutual parties.
