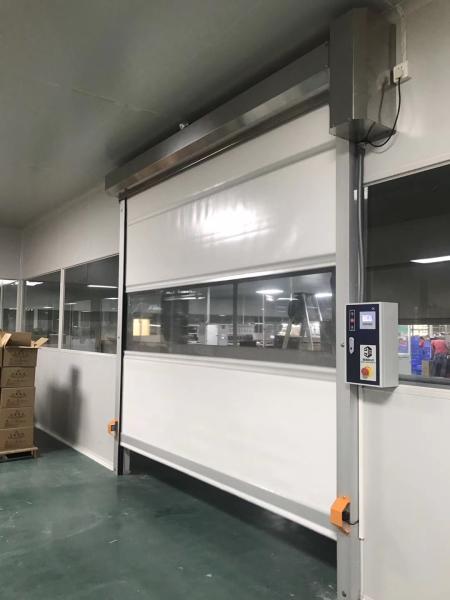

Interior Fast High Speed Rolling Shutters Anti Static Plastic PVC
roll-up shutter remote control roller shutter Door
Basic Info
| Material | PVC |
| Position | Industry |
| MOQ | 1 set |
| Certification | CCC,ISO,CE |
| Origin | Guangzhou, China |
| Color | Original color or other RAL colors |
| Sample | available |
Product Destription
- Technical Parameter
Power supply: 100V AC-15% to 250 V AC+10%; 50/60Hz
Power consumption: Max -250W
Opening & Closing speed: 0.7~1.2m/s
Opening & Closing frequency: 1000-1500 cycles/day
Wind load: 15 m/s
Working temperature: -10ºC to +50ºC
- Nord motor data parameter
0.75 KW Rating: S1 IP: 55 Ins: F
V Hz A r/min
220△ 50 3.80 1380
380Y 50 2.20 1260
CosΦ: 0.73
Speed ratio: 10.91
Brake Voltage: 220V
BrakeTorque: 10
Torque: 50 NM
Features
High speed, Delayed sel-closing, Dust-proof, insects-proof, high
efficient, energy-saving
Application
High speed doors are widely used in belowed applications:
electronic, Precision instrumentand machinery, Medicine, Food,
Printing, Packing, Car production, Air shower, Cleaningworkshop,
Warehouse logistics, Welding, Surface finising (Powder coating),
which has highrequirement of sanitary condition.
Specification
- Control systems
- Dynamical system
- Door Construction
- Command system
- Safe system
Drawings
Appearance
Controal system
Motor
Safety device
Sealability
Open ways
Project Photo Gallery
Certification
FAQ of High Speed Door
- What are your main PVC door products?
A: Our main PVC door products are insulated sectional industry
door. We can offer different materials such as polyurethane
sandwich panel, aluminum profile with tempered glass, solid wood,
aluminum sheet, laser cut design, and other new materials
available.
- What is the delivery time?
A: 20 days for the standard colors and 30 days for the customized.
Also it depends on the specifications and quantity each order.
Shipment time depends on the location of our customers.
- What is your payment items?
A: Normally we accept 30% for deposit by T/T and the balance would
be arranged before delivery. If you have any other suggestion,
please contact with us.
- Can we place one or two sets for trial?
A: Yes of course, this is the better way of quality check. Also if
you don't required one whole set, we have small sample in stock as
well, it is free of charge, you just need to handle with the
freight. It is a good way to show the sincerity for both of us.
- How can I know the price exactly?
A: The price is based on your specific requirements, it is better
to provide as much as possible information such as color, size,
quantity, market location, sales patterns, all of these would be of
help us to quote the exact price.
- Can I order components instead of the full set of door?
A: Yes, as a factory we welcome business clients purchasing
components of the door, such as panels, hardware's, motors, etc.,
to maximize the advantage of our mutual parties.
