Electric pvc door remote control High Speed Door/Servo Motor
Control System PVC Rapid High Speed Door for Factories
Basic Info
| Material | PVC |
| Position | Industry |
| MOQ | 1 set |
| Certification | CCC,ISO,CE |
| Origin | Guangzhou, China |
| Color | Original color or other RAL colors |
| Sample | available |
Product Destription
Our servo control system is suitable for rapid door and spiral
doors.
The system is in compact package, with high torque and high
operating speed, lower noise, high reliability, smooth and soft
operating curves, it’s suitable for high speed and intensive usage
environment.
The system is in compact package, with high torque and high
operating speed,lower noise, high reliability, smooth and soft
operating curves, it’s suitable for high speed and intensive usage
environment.
The rolling curtain can be controlled by wall switch, push button,
bluetooth,ground radar, ground magnetic sensors, etc.
Operating Speed: 0.5m/s-1.5m/s; Operating Width: ＜16 ㎡ / ; ＜32 ㎡
Daily
Operating time: 2000 time; Rated voltage: 220v; Rated Powever: 0.75
KW /1.5KW
Features
Higher quality
High speed
Delayed sel-closing,
Dust-proof
Insects-proof
High efficient
Energy-saving
Application
High speed doors are widely used in belowed applications:
electronic, Precision instrumentand machinery, Medicine, Food,
Printing, Packing, Car production, Air shower, Cleaningworkshop,
Warehouse logistics, Welding, Surface finising (Powder coating),
which has highrequirement of sanitary condition.
Specification
Specification for Controller
| Model | A2-DC1 | |
| Enclosure material | SPCC | |
| Dimension(L*W*H) | 340x195x95(125)(include E-STOP) | mm |
| Installation method | Vertical installation without vibration | |
| Power supply | 1N~200-240 | V |
| Power frequency | 50/60 | Hz |
| Rate output power | 1.5 | KW |
| External power supply | 24 | VDC |
| 0.4 | A |
| Ambient temperature | -10～+50 | ℃ |
| Storage temperature | -25～+55 | ℃ |
| Ambient humidity | 30%-85%, No condensation | |
| Place of use | Indoor, no direct sunlight, no dust, corrosive gas, oil mist, water
vapor, etc. |
| Weight(net) | 3.0 | Kg |
Specification for Motor
| Model | A2-PE200 | A2-PE500 | |
| Dimension(L*W*H) | 440x110x180 | 522x130x200 | mm |
| Rated Output Power | 0.75 | 1.5 | KW |
| Rated Speed | 2,500 | 2000 | RPM |
| Rated Torque | 2.86 | 7.2 | Nm |
| Power supply | 1N ~ AC200-240 | V |
| Power frequency | 50/60 | Hz |
| Power current | 6.5 | 13 | A |
| Ambient temperature | -10～+40 1) | ℃ |
| Storage temperature | -25～+55 | ℃ |
| Ambient humidity | 30%-85%, No condensation | |
| IP degree | IP54 | |
| Limit Mode | Absolute Encoder, Proximity switch |
| Self Locking Mode | Electro Mechanical Brake |
| Manual Release | Handle |
| Weight(net) | 10.2 2) | 17 3) | Kg |
Drawings
Bluetooth
Motor
Colors options

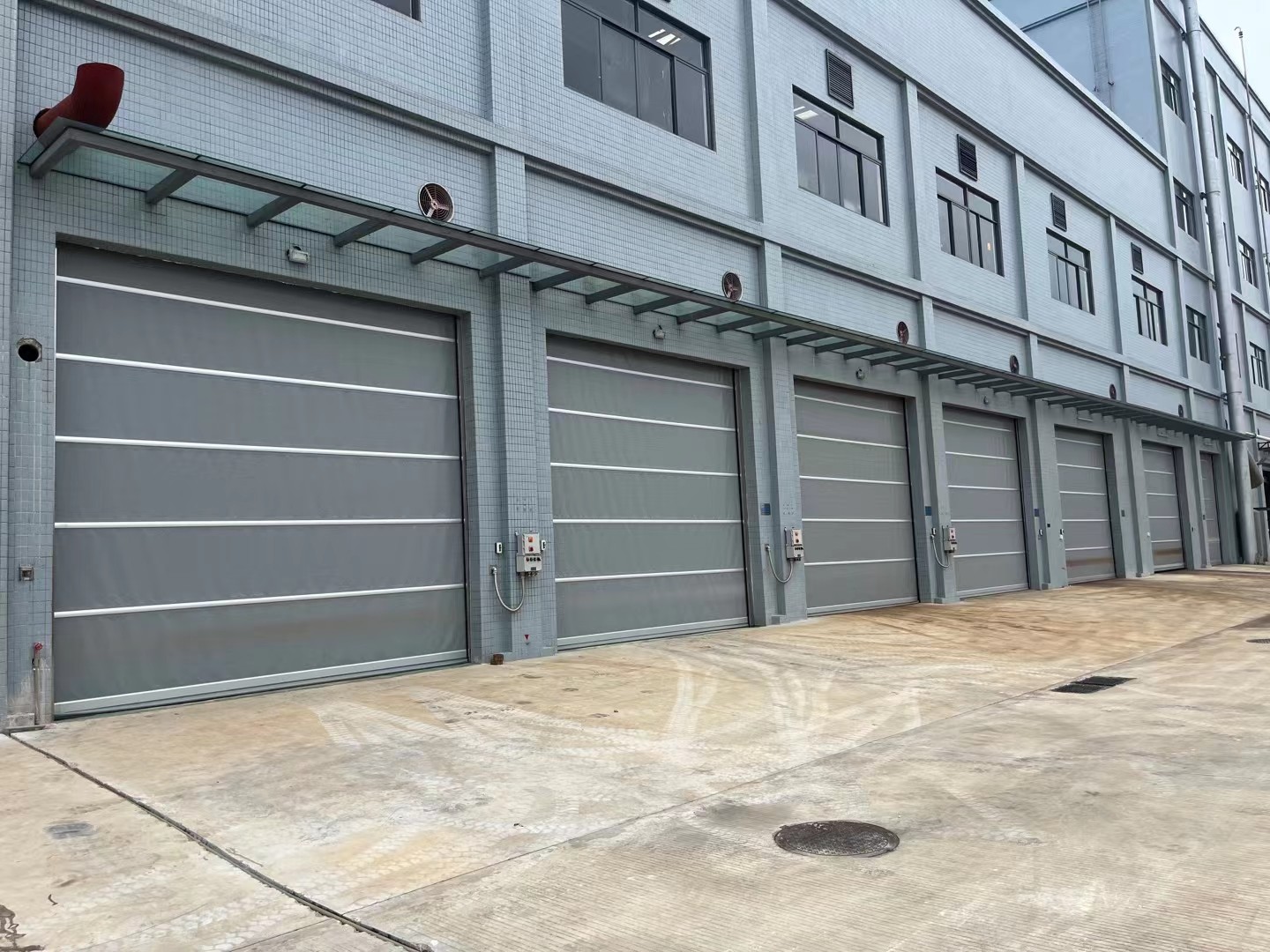

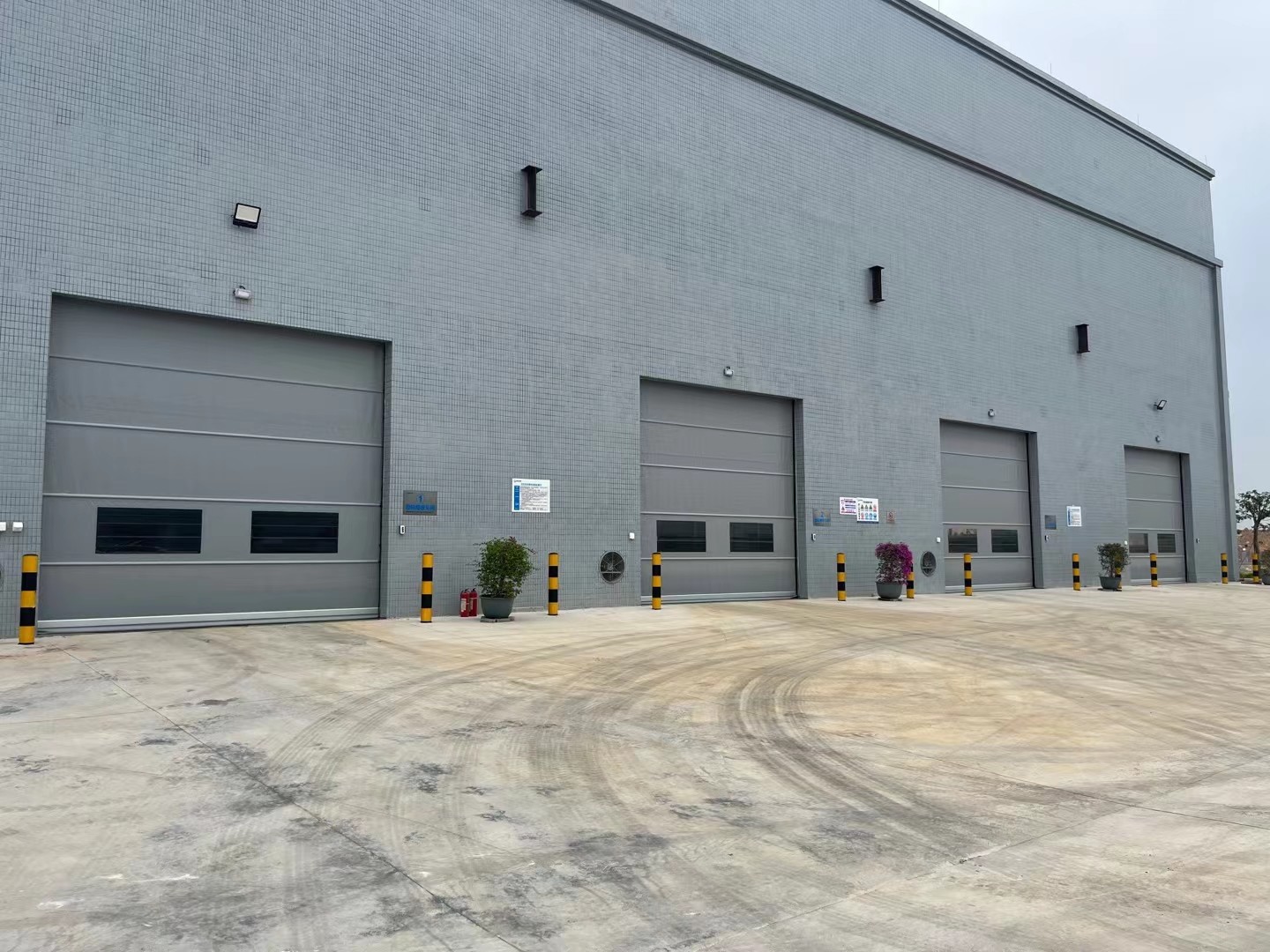

Project Photo Gallery
Factory environment
Certification
FAQ of High Speed Door
- What are your main PVC door products?
A: Our main PVC door products are insulated sectional industry
door. We can offer different materials such as polyurethane
sandwich panel, aluminum profile with tempered glass, solid wood,
aluminum sheet, laser cut design, and other new materials
available.
- What is the delivery time?
A: 20 days for the standard colors and 30 days for the customized.
Also it depends on the specifications and quantity each order.
Shipment time depends on the location of our customers.
- What is your payment items?
A: Normally we accept 30% for deposit by T/T and the balance would
be arranged before delivery. If you have any other suggestion,
please contact with us.
- Can we place one or two sets for trial?
A: Yes of course, this is the better way of quality check. Also if
you don't required one whole set, we have small sample in stock as
well, it is free of charge, you just need to handle with the
freight. It is a good way to show the sincerity for both of us.
- How can I know the price exactly?
A: The price is based on your specific requirements, it is better
to provide as much as possible information such as color, size,
quantity, market location, sales patterns, all of these would be of
help us to quote the exact price.
- Can I order components instead of the full set of door?
A: Yes, as a factory we welcome business clients purchasing
components of the door, such as panels, hardware's, motors, etc.,
to maximize the advantage of our mutual parties.
