High Transparent Glass/Visibility /Security rolling up
shutter/Full-View Garage Door/garage rolling shutter doors
Basic Info
| Model NO. | MT001 |
| Power | 60-120V |
| Door Panel Pattern | Frosted Glass/Clear Glass/Plexiglass |
| Surface Finishing | Powder Coated Aluminum Alloy( (UV Proof) |
| Hardware/Accessories | Galvanized Steel |
| Motor | OEM or Branded Motors |
| Transport Package | Bubble Bag + Fiberboard Packing |
| Trademark | OEM |
| HS Code | 761010 |
| Motor Shaft | Ranging From 3-6 Meters |
| Output Torque | 600-1500n |
| Color | White/Dark & Customized |
| Panel Construction | Pinch Protection |
| Operation | Electric /Remote/Manual |
| Voltage | 110/220/380 |
| Specification | Suitable for commercial and residential |
| Origin | China |
| Production Capacity | 10000 |
Product Destription

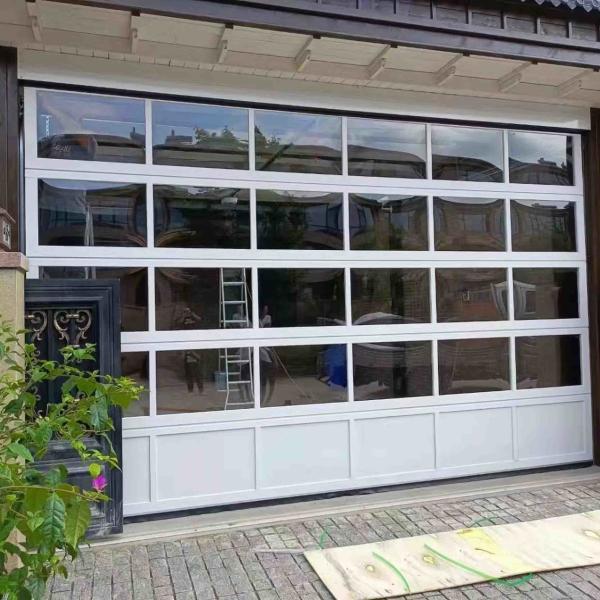

Glass aluminum sectional garage doors combine the sleek and modern
appearance of glass panels with the strength and durability of
aluminum frames. This type of garage door is perfect for both
residential application and commercial buildings such as
restaurants, service and fire stations, car dealerships, and also
commercial, retail, and office spaces. These doors are a popular
choice for those looking to add a contemporary touch to their
garage while maintaining functionality and security.
Key Features And Benefits
•Durability: Steel construction makes these doors strong and resistant to
denting, warping, and damage caused by weather elements.
•Energy efficiency: The multiple layers of insulation within the door panels help to
regulate temperature and minimize heat transfer, resulting in
energy savings and a more comfortable garage.
•Noise reduction: The insulation in steel insulated sectional garage doors helps to
reduce noise transmission, providing a quieter environment inside
the garage.
•Customization options: These doors come in a variety of colors, panel designs, and
window styles, allowing you to personalize the appearance to match
your home or building.
•Enhances curb appeal: Steel insulated sectional garage doors are visually appealing and
can significantly enhance the overall look of your property,
increasing its value and attractiveness.
Operation
♦Door leaf should smoothly slide vertically along the tracks and be
properly balanced, i.e. extension springs should compensate leaf
weight
♦For opening the door in manual operation sue only the door handle
♦Do not lift too much force when opening or closing the door.
Prevent any sharp movements of the door
♦Keep people and animals clear of opening while the door is
operating
♦Never stay or cross under a moving door leaf as it may cause
serious injury or death
Horizon
Vista
Details Drawing
1. Vertical track
2. Vertical angle
3. Cylindrical shaft
4. Spring safety device
5. Drum
6. U-shaped bracket
7. Counterbalancing mechanism (torsion spring)
8. Steel coupler
9. Internal support bracket
10. Top support with roller holder
11. Side support with roller holder
12. Hinge
13. Cable break safety device
14. Bottom profile
15. Panoramic panel
16. Bottom seal
17. Side seal
18. Top profile
19. Top seal
20. Perforated side cap
21. Full-vision impact-resistant filling
22. Spring bumper
23. Universal mounting bracket for horizontal tracks
Complications
Full-vision door panel. Unbreakable, impact resistant polycarbonate
is used as panel glazing
Double reinforcement on side aluminum profile provides structural
rigidity and secure fastening of brackets
Side tracks and vertical angles made of 2 mm steel have increased
strength and all the necessary perforation
Spring break safety device reliably locks the shaft in case of
emergency preventing the door leaf from falling
Project Photo Gallery
Factory View
Certification
FAQ of Warehouse Garage Roll up Garage Doors
A, What are your main garage door products?
Our main garage door products are insulated sectional garage
doors,we can offer different materials such as polyurethane sandwich panel, aluminum profile with tempered glass,solid wood,aluminum sheet,laser cut design,and other new materials available.
B. What is the delivery time ?
A: 20 days for the standard colors and 30 days for the customized. Also it depends on the specifications and quantity each order. Shipment time depends on the location of our customers.
C, What is your payment items?
A: Normally we accept 30% for deposit by T/T and the balance would be arranged before delivery. If you have any other suggestion, please contact with us.
D, Can we place one or two sets for trial?
A: Yes of course,this is the better way of quality check. Also if you don't required one whole set, we have small sample in stock as well, it is free of charge,you just need to handle with the freight.It is a good way to show the sincerity for both of us.
E, How can I konw the price exactly?
A: The price is based on your specific requirements, it is better to provide as much as possible information such as color,size,quantity,market location,sales patterns,all of
these would be of help us to quote the exact price.
F, Can I order components instead of the full set of door?
Yes, as a factory we welcome business clients purchasing components
of the door, such as panels, hardwares, motors, etc., to maximize
the benifit of our mutual parties.
